MICRO.MATE
The coating thickness meter is very easy to use and is ideal for iron and steel substrates. It measures layers of various coating materials according to ISO 2178. The compact, lightweight device works perfectly in areas that are difficult to access. It comes with a measuring aid that increases the reproducibility of measurements of uneven sheet surfaces.
Features and Benefits MICRO.MATE
Application
The coating thickness meter MICRO.MATE is very easy to use and is ideal for iron and steel substrates from 0 to 1000 µm. It measures layers of coating materials according to ISO 2178 and works from a 2 mm diameter spot size. The compact, lightweight device is barely larger than a measuring probe and is ideal for on-site applications in areas that are difficult to access.

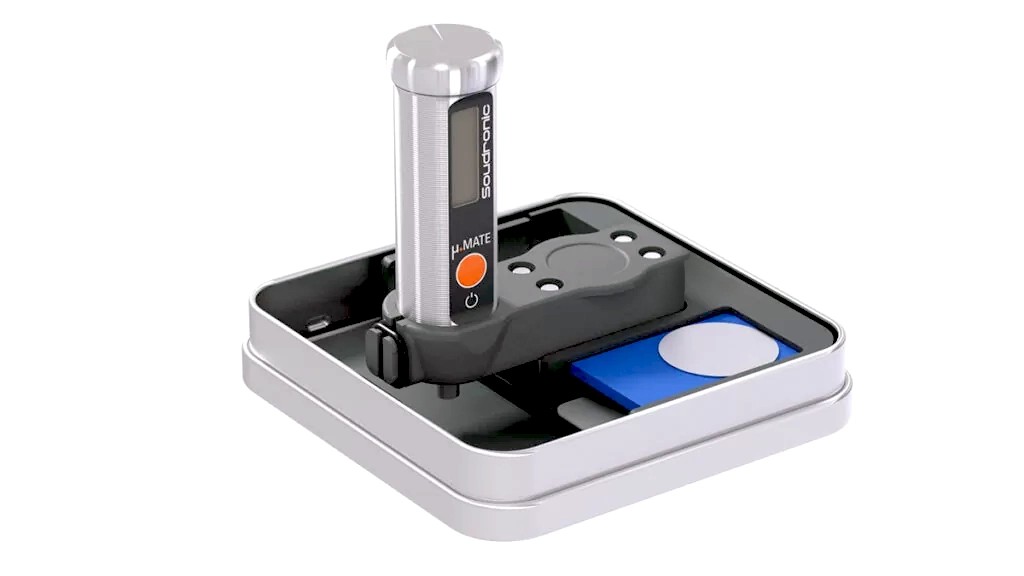

Reproducible measurement
The measuring aid is the perfect means to accurately measure the layer thickness of an uneven sheet surface. Just place the cut-out, uneven sheet strip directly under the measuring aid. This process increases the reproducibility of measurements.

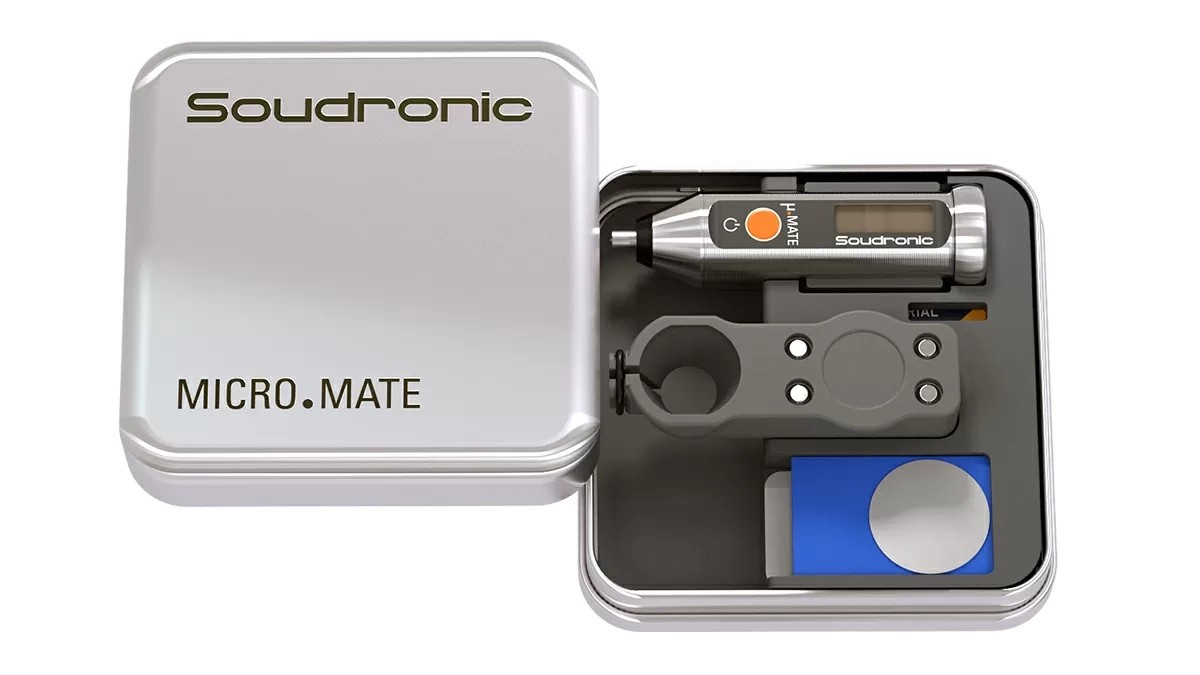

Compact case
Everything you need for accurate measurements is conveniently stored in a compact metal case.
- MICRO.MATE meter
- Measuring aid
- USB Bluetooth receiver
- 2x battery 1.5 V AA Mignon
- Calibration base plate FE
- Calibration foils (1x 291 µm; 1x 98 µm)
- Calibration certificate
Specification
| Application | layers of lacquer, paint, plastic, rubber, ceramic, zinc and galvanic coatings (except nickel) according to ISO 2178 |
| Measuring probe | sensing device, springy |
| Smallest area | ø 2 mm |
| Smallest curvature radius | convex 1 mm, concave 6 mm |
| Calibration value | 300 µm |
| Accuracy | less than 100 µm ± 1 µm, > 100 µm: ± 1 % |
| Resolution | 1-100 µm: 0.1 µm, > 100 µm: 1 µm |
| Measuring units | µm and mils |
| Environment temperature | 0 – 50° C |
| Display | illuminated high contrast graphic OLED display |
| Multilingual menu navigation | German, English |
| Data logger | 4000 measured values flexibly divisible |
| Statistics | count / maximum / minimum / average / standard deviation |
| Interface | Bluetooth Low Energy (BLE) interface for communication with Android, iOS and Windows |
| App for Android, iOS, Windows | free of charge via Google Play Store, Apple App Store |
| Power supply | 1x 1.5 V AA Mignon |
| Operating time | approx. 50 hours |
| Dimensions (device) | Ø 28 x 95 mm |
| Weight (device) | 76 g (with battery) |
| Tightness | IP 64 (splash-proof) |
