High efficiency end making systems for lids and shells

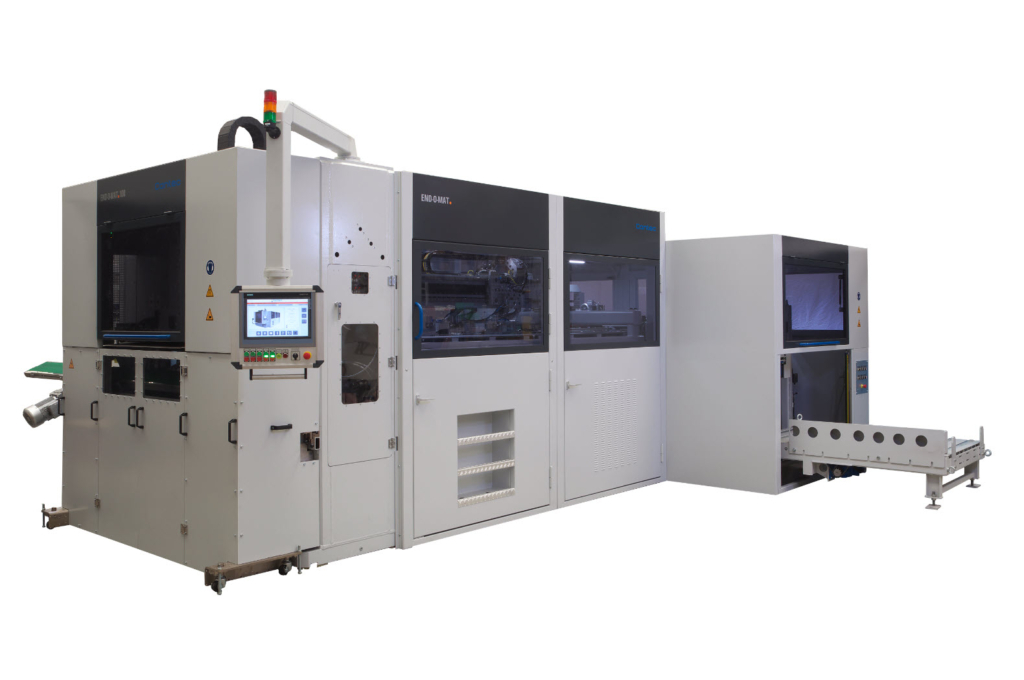

The END-O-MAT combined machine systems are designed for medium and high-speed end production for lids, EO shells, rings and bottom ends and meet all technical and commercial challenges of an end maker. The machines perform stamping, curling and lining operations and are available with sheet or coil feeding.

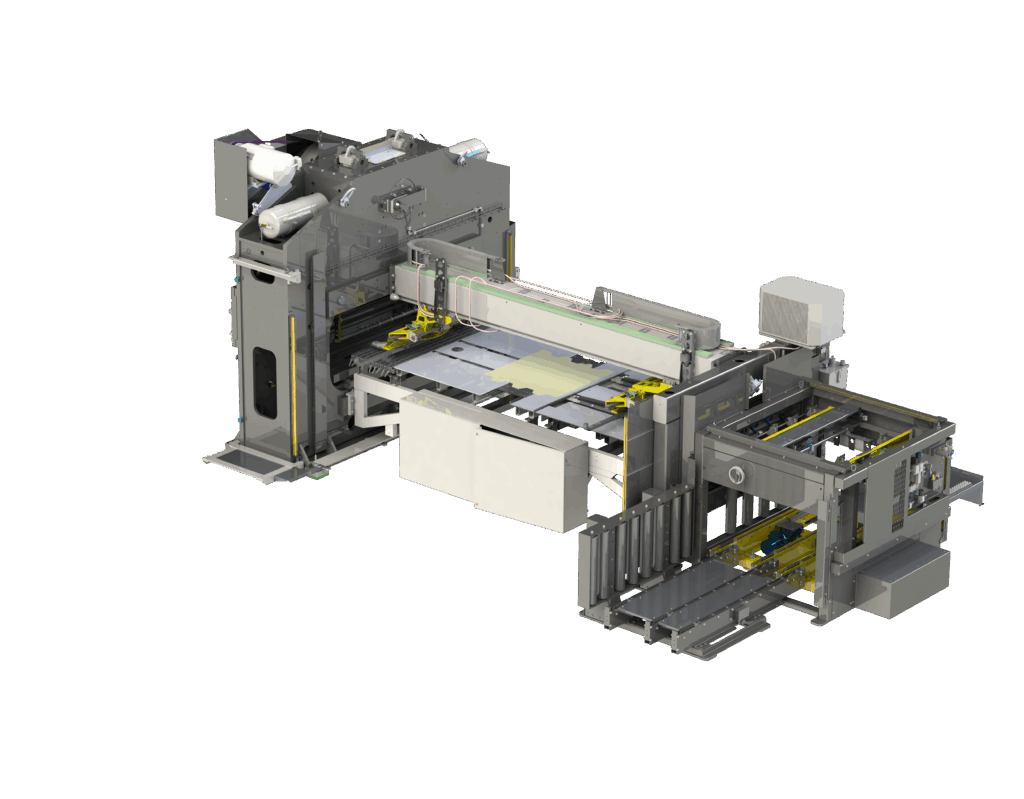

Our UNIPRESS machines are designed to produce deep-drawn cans as well as regular lids, end or shells. The machine can perform several stages like stamping, pre-drawing, final-drawing, embossing, paneling and trimming.
Application
End Forming
Curling
Lining
Handle Welding
Shape
Round
Irregular Shape
Series
END-O-MAT
UNIPRESS

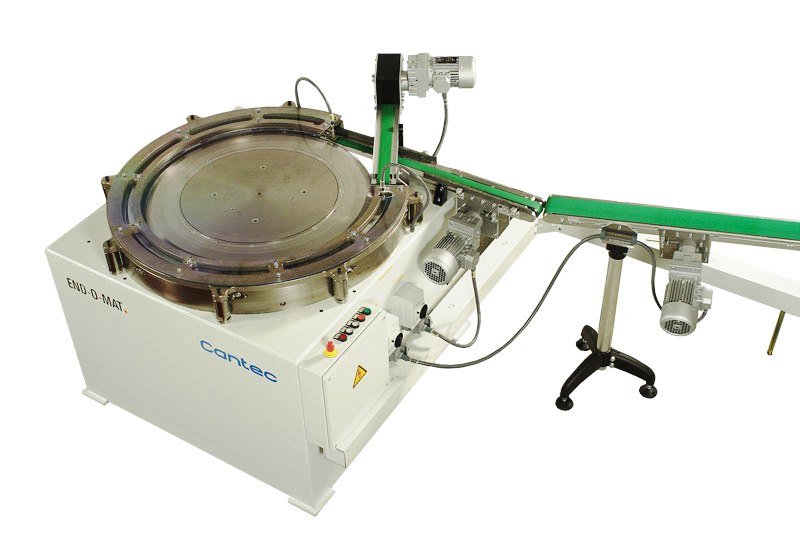

Disc Curler

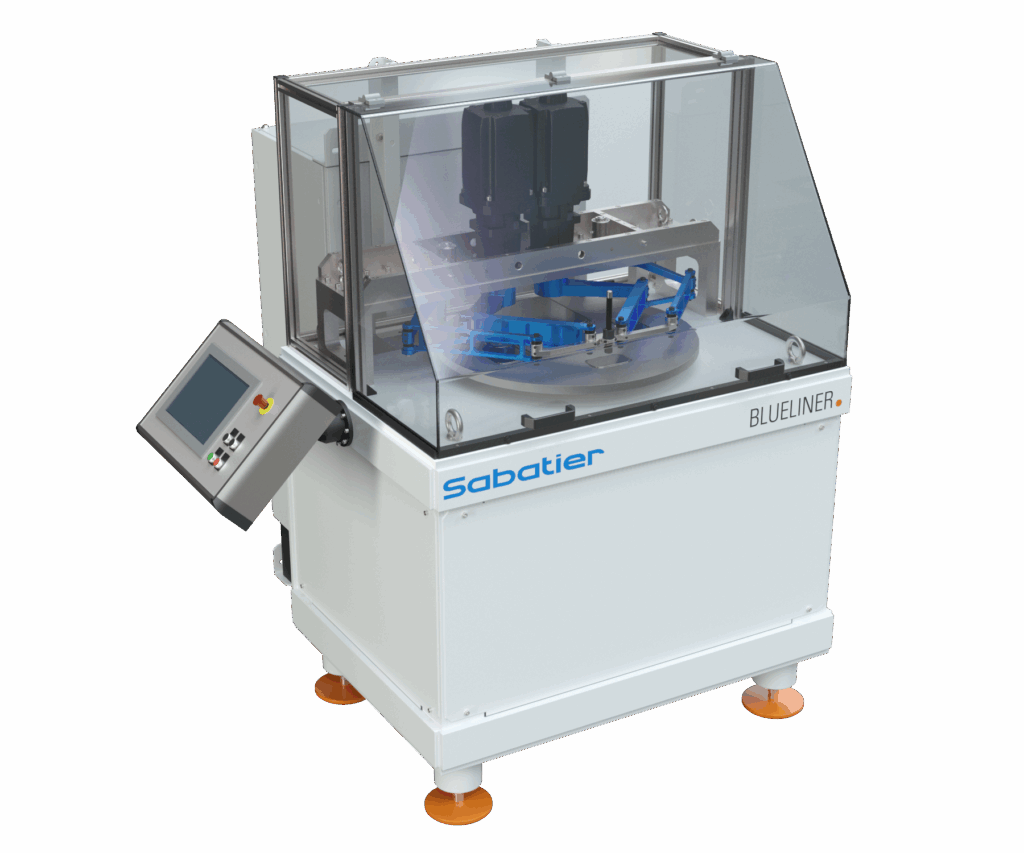

High-Speed Liner

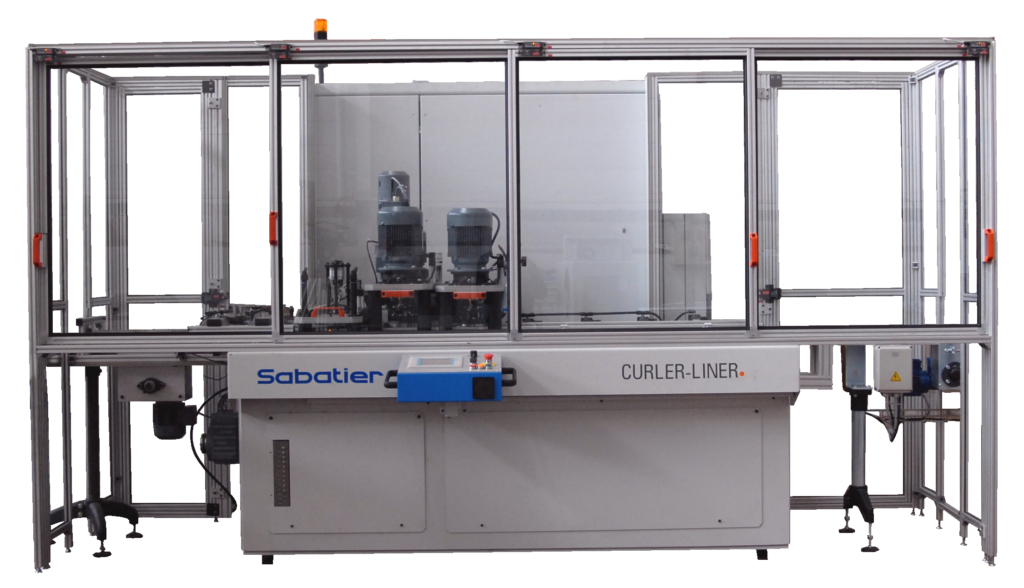

Curler Liner Round
Curler Liner Irregular Shape

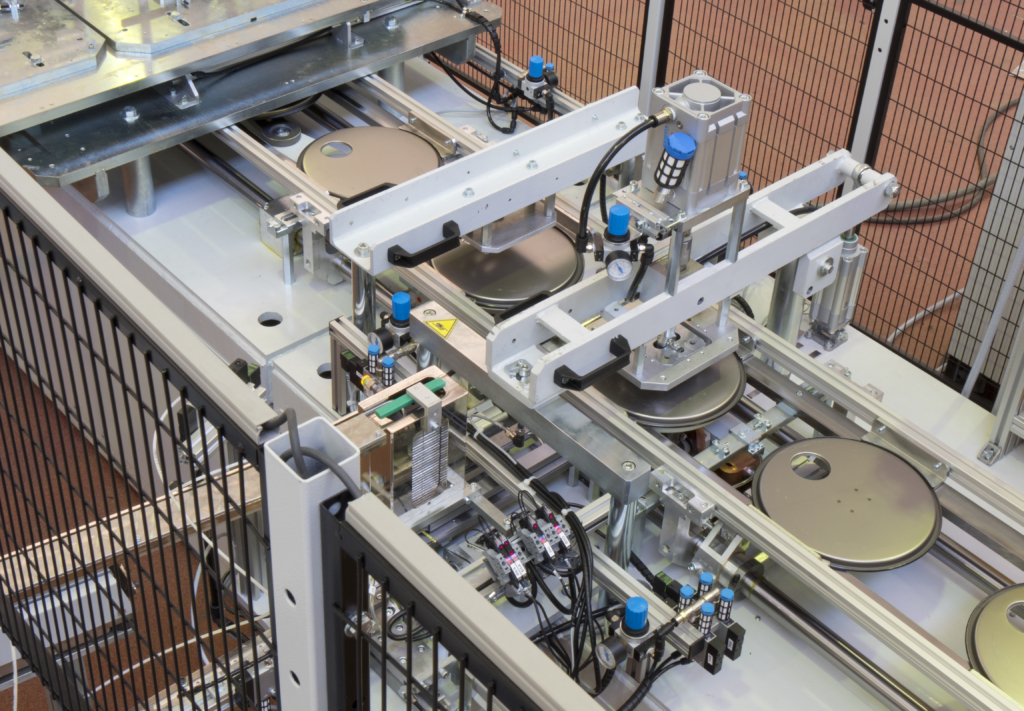

Clip Welder Round

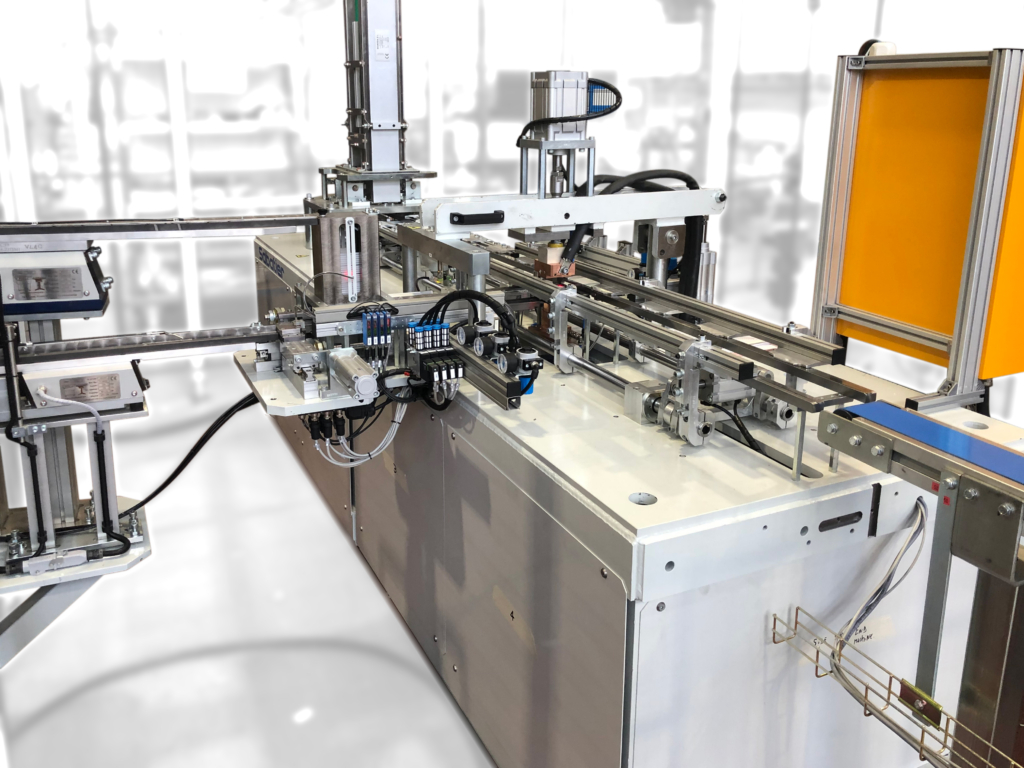

Clip Welder Irregular Shape
Series
Application
Shape
Production [epm]
End Dimensions Ø [mm]
End Dimensions L x W [mm]
Max. press force [kN]
Number of Strokes [strokes/min.]
Ring / End material
Ring thickness
Lanes
Company Brand
UNIPRESS
End Forming
Round, Irregular Shape
Up to 1800
46 – 225
60×40 – 235×235
800
80 – 225
Steel or aluminium
Fe 0.14 – 0.35AI 0.15 – 0.35
1 – 8
